Item |
Unit |
MAIVL1100B |
MAIVL1300B |
MAIVL1600B |
|
Max. swing Dia. |
mm |
1100 |
1300 |
Ø1600 |
|
Max. cutting Dia. |
mm |
1100 |
1300 |
Ø 1600 |
|
Disc surface Dia. |
mm |
Ø 800 |
Ø 1000 |
Ø 1400 |
|
Max. cutting height |
mm |
1000 |
1000 |
1000 |
|
X axis travel |
mm |
-20, +675 |
-20, +675 |
-50，+1000 |
|
Z axis travel |
mm |
1120 |
1120 |
900（Square slide travel) |
|
X axis rapid feed rate |
m/min |
16 |
16 |
10 |
|
Z axis rapid feed rate |
m/min |
16 |
16 |
10 |
|
Spindle nose |
- |
A2-15 |
A2-15 |
A2-20 |
|
Spindle speed |
rpm |
15-600( Max.speed of a manual 4-jaw chuck is 400rpm) |
15-600( Max.speed of a manual 4-jaw chuck is 400rpm) |
20-375, 5～165, two steps, stepless in each
|
|
Max.speed with 4-jaw manual chuck 125RPM |
|
Main motor power |
kw |
30 |
50 |
50/60 |
|
Max. table load |
kg |
4000 （with chuck） |
4000 （with chuck ） |
6000（with chuck） |
|
Heavy duty 4-jaw manual chuck |
mm |
Ø800 |
Ø1000 |
Ø1400 |
|
Square slide size |
mm |
/ |
/ |
360×220 |
|

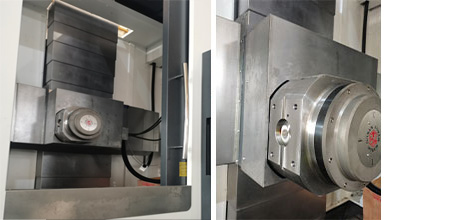

No. of tool post station |
/ |
Horizontal 12-station /Vertical 4-station |
Horizontal 12-station /Vertical 4-station |
Vertical 4-station |
|
Standard turning tool holder |
mm |
32×32 |
32×32 |
40×40 |
|
Boring tool holder |
mm |
Ø50（Horizontal ）/Ø60（Vertical ） |
Ø50（Horizontal ）/Ø60（Vertical ） |
Ø60 |
|
X/Z positioning accuracy |
mm |
≤0.012 /0.016 |
≤0.012 /0.016 |
≤0.012 /0.012 |
|
X/Z repeat positioning accuracy |
mm |
≤0.007/0.010 |
≤0.007/0.010 |
≤0.008/0.008 |
|
Machine dimension (LxWxH) |
mm |
2950x3500x3900 |
3100x3750x3900 |
7000×4900×5530 |
|
Machine weight |
kg |
15500 |
16500 |
23000 |
