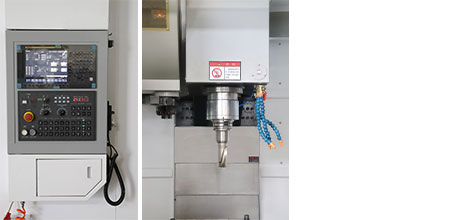

Item |
Unit |
MAIVM1370L |
MAIVM1580L |
MAIVM1690L |
MAIVM1890L |
|
Travel |
|
X axis travel |
mm |
1300 |
1500 |
1600 |
1800 |
|
Y axis travel |
mm |
700 |
800 |
900 |
900 |
|
Z axis travel |
mm |
700 |
700 |
700 |
700 |
|
Distance from spindle centerline to column guide rail surface |
mm |
752 |
950 |
1000 |
1080 |
|
Distance from spindle nose to worktable surface |
mm |
150-850 |
180-880 |
150-850 |
180-880 |
|
Work table |
|
Table size |
mm |
1500×700 |
1700×800 |
2000×900 |
2000×900 |
|
T-slot (width x number x sapcing) |
mm |
18×5×145 |
22×5×150 |
22×5×165 |
22×5×165 |
|
Max. table load |
kg |
900 |
1500 |
1900 |
1900 |
|
Spindle system |
|
Spindle taper & Dia. |
|
BT40/Φ150 |
BT50/Φ155 |
BT50/Φ190 |
BT50/Φ190 |
|
Spindle speed |
rpm |
8000 |
6000 |
6000 |
6000 |
|
Spindle motor power |
kW |
11月15日 |
15/18.5 |
15/18.5 |
15/18.5 |
|
Feed system |
|
X/Y/Z axis rapid movement speed |
m/min |
20/20/20 |
20/20/20 |
20/20/20 |
20/20/20 |
|
X/Y/Z axis motor torque |
Nm |
27/27/27 |
27/27/27 |
36/36/36 |
36/36/36 |
|
X roller linear guide |
mm |
45 |
55 |
55 |
55 |
|
Y roller linear guide |
mm |
45 |
45 |
45 |
45 |
|
Z roller linear guide |
mm |
45 |
55 |
55 |
55 |
|
X/Y/Z positioning accuracy |
mm |
≤0.001/0.008/0.008 |
≤0.001/0.008/0.008 |
≤0.02/0.01/0.01 |
≤0.02/0.01/0.01 |
|
X/Y/Z repeat positioning accuracy |
mm |
≤0.008/0.006/0.006 |
≤0.008/0.006/0.006 |
≤0.012/0.008/0.008 |
≤0.012/0.008/0.008 |
|
Tool changing system |
|
Tool magazine capacity |
pcs |
24 |
24 |
24 |
24 |
|
Max. tool Dia. (adjacent/adjacent space) |
mm |
Ф78/Ф120 |
Ф112/Ф200 |
Ф112/Ф200 |
Ф112/Ф200 |
|
Max. tool weight |
kg |
8 |
18 |
18 |
18 |
|
Max. tool length |
mm |
300 |
300 |
300 |
300 |
|
Tool change time (T-T) |
Sec. |
2 |
4 |
4 |
4 |
|
Others |
|
Spindle unloading method |
|
pneumatic |
pneumatic |
pneumatic |
pneumatic |
|
X/Y/Z axis motor connection mode |
|
direct type |
direct type |
direct type |
direct type |
|
Overall dimensions(LxWxH) |
|
3850x2770x2835 (w/o chip conveyor) |
3900x3275x3150(w/o chip conveyor) |
4640x3450x3100 (w/o chip conveyor) |
4640x3450x3100(w/o chip conveyor) |
|
Machine weight |
t |
9.5 |
13 |
15.5 |
16 |
|
CNC system |
|
FANUC 0i MF（5） |
FANUC 0i MF（5） |
FANUC 0i MF（5） |
FANUC 0i MF（5） |
