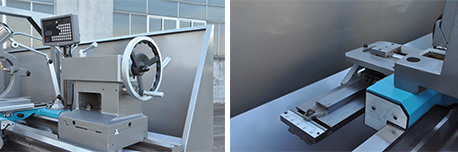

Manual Lathe

| Item | Unit | MAI6250A | MAI6256C | MAI6266C | MAI6277C |
| Processing | |||||
| Max. swing Dia. over bed | mm | Ф500 | Ф560 | Ф660 | Ф770 |
| Max. swing Dia. over carriage | mm | Ф310 | Ф360 | Ф420 | Ф570 |
| Max. swing Dia. in gap | mm | Ф720 | Ф770 | Ф870 | Ф1050 |
| Width of bed | mm | 405 | 405 | 405 | 405 |
| Max.length of workpiece (Two centers) | mm | 1000/1500/2000/3000 | 1000/1500/2000/3000 | 1000/1500/2000/3000 | 1500/2000/3000 |
| Maximum turned length | mm | 830/1350/1850/2850 | 830/1330/1830/2830 | 830/1330/1830/2830 | 1330/1830/2830 |
| Effective gap length | mm | 230 | 230 | 230 | 230 |
| Spindle | |||||
| Spindle nose | D8 | D8 | D8 | D8 | |
| Spindle bore | mm | Ф80 | Ф105 | Ф105 | Ф105 |
| Taper of bore | M.T.No.7 | Metric Ф113 1:20 | Metric Ф113 1:20 | Metric Ф113 1:20 | |
|
Steps of spindle speed
|
12 Steps | 12 Steps | 12 Steps | 12 Steps | |
|
Range of spindle speed
|
rpm | 36~1600 | 36~1600 | 36~1600 | 36~1600 |
| Thread cutting | |||||
| Metric range/No. | 1~14mm/22 | 1~14mm/22 | 1~14mm/22 | 1~14mm/22 | |
| Inch range/No | 28-2T.P.I/26 | 28~2T.P.I/26 | 28~2T.P.I/26 | 28~2T.P.I/26 | |
| D.P.Range/No. | 56~4D.P/24 | 56~4D.P/24 | 56~4D.P/24 | 56~4D.P/24 | |
| Module range/No. | 0.5~7M.P/18 | 0.5~7M.P/18 | 0.5~7M.P/18 | 0.5~7M.P/18 | |
| Feed | |||||
|
Range of longitudinal feed
|
mm | 0.063~2.52 | 0.063~2.52 | 0.063~2.52 | 0.063~2.52 |
|
Range of cross feed
|
mm | 0.027~1.07 | 0.027~1.07 | 0.027~1.07 | 0.027~1.07 |
|
Travel
|
|||||
| Longitudinal | m/min | 4.5 | 4.5 | 4.5 | 4.5 |
| Cross | m/min | 1.9 | 1.9 | 1.9 | 1.9 |
| Max.travel of top slide | mm | 145 | 145 | 145 | 145 |
| Max.travel of cross slide | mm | 340 | 310 | 360 | 430 |
| Max. size of tool shank (W×H) | mm | 25×25 | 25×25 | 25×25 | 25×25 |
| Tailstock | |||||
| External Dia. | mm | Ф75 | Ф75 | Ф75 | Ф75 |
| Taper of bore | M.T.No.5 | M.T.No.5 | M.T.No.5 | M.T.No.5 | |
| Max. traverse | mm | 150 | 150 | 150 | 150 |
| Power of main motor(double speeds) | kW | 7.5 | 7.5 | 7.5 | 7.5 |
| Overall dimensions(LxW×H) | mm |
2500/3000/3500/4500× 1280/1070×1380 |
2500/3000/3500/4500× 1280/1070×1350 |
2500/3000/3500/4500× 1280/1070×1450 |
3000/3500/4500×1610×1540 |
| Net weight | kg | 2900/3150/3400/3750 | 2400/2650/2900/3250 | 3000/3200/3400/3900 | 3000/3800/4000 |
The specifications, text descriptions, confiqurations, pictures, colors, etc. given herein are subject to alternation without notice and thus wthout any obligation.
