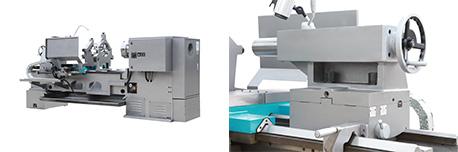

Item |
Unit |
MAI6163A/MAI6263A |
MAI6180A/MAI6280A |
|
Processing
|
|
|
|
|
Max. swing Dia. over bed |
mm |
Ф630 |
Ф800 |
|
Max. swing Dia. over carriage |
mm |
Ф370 |
Ф510 |
|
Max. swing Dia. in gap( Only for 62 series) |
mm |
Ф830 |
Ф1000 |
|
Width of bed |
mm |
560 |
560 |
|
Max. length of workpiece |
mm |
1000/1500/2000/3000/4000 |
1000/1500/2000/3000/4000 |
|
Maximum turned length |
mm |
900/1400/1900/2900/3900 |
900/1400/1900/2900/3900 |
|
Effective gap length |
mm |
310 |
310 |
|
Max.weight of workpiece(between centers) |
kg |
2000 |
2000 |
|
Spindle |
|
|
|
|
Spindle nose |
|
D11 |
D11 |
|
Spindle bore |
mm |
Ф105 |
Ф105 |
|
Taper of bore |
|
Metric Ф120 1:20 |
Metric Ф120 1:20 |
|
Steps of spindle speed
|
|
18 |
18 |
|
Range of spindle speed
|
rpm |
7.5~1000 |
7.5~1000 |
|
Feed
|
|
|
|
|
Pitch & Dia. of longitudinal ball screw
|
mm |
12/Ф55 |
12/Ф55 |
|
Number of longitudinal feeds |
|
64 |
64 |
|
Range of longitudinal feeds (1:1) |
rpm |
0.1~1.52 |
0.1~1.52 |
|
Range of longitudinal feeds(16:1) |
rpm |
1.6~24.3 |
1.6~24.3 |
|
Number of cross feeds |
|
64 |
64 |
|
Range of cross feeds |
|
half of longitudinal feeds |
half of longitudinal feeds |
|
Thread cutting |
|
|
|
|
Metric range/No. |
|
1~240mm/50 |
1~240mm/50 |
|
Inch range/No |
|
14~1T.P.I/26 |
14~1T.P.I/26 |
|
D.P.Range/No. |
|
28~1D.P/24 |
28~1D.P/24 |
|
Module range/No. |
|
0.5~120M.P/53 |
0.5~120M.P/53 |
|
Rapid traverse |
|
|
|
|
Longituding |
mm/min |
4000 |
4000 |
|
Cross |
mm/min |
2000 |
2000 |
|
Tailstock |
|
|
|
|
External Dia. |
mm |
Ф100 |
Ф100 |
|
Taper of bore |
|
M.T.No.6 |
M.T.No.6 |
|
Max. traverse |
mm |
230 |
230 |
|
Vertical distance from spindle center to installing basis |
mm |
33 |
33 |
|
Max.travel of compound rest |
mm |
200 |
200 |
|
Swing angle of tool post |
Deg.
|
±90 |
±90 |
|
Max.cross slide travel |
mm |
440 |
480 |
|
Max. size of tool shank (W×H) |
mm |
32×32 |
32×32 |
|
Power of main motor |
kW |
11 |
11 |
|
Rapid feed motor power |
kW |
1.1 |
1.1 |
|
Coolant pump power |
W |
90 |
90 |
|
Overall dimensions(L×W×H) |
mm |
3275/3725/4225/5225/6275×1393×1537 |
3275/3725/4225/5225/6275×1393×1537 |
|
Net weight |
kg |
3400/3700/4200/4700/5800 |
3600/3900/4400/4900/6000 |
