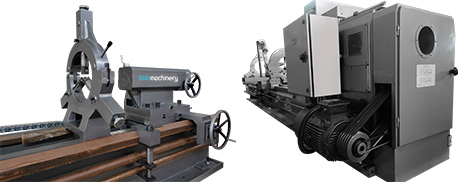

Item |
Unit |
MAI61100C/MAI62100C |
MAI61125C/MAI62125C |
MAI61140C/MAI62140C |
|
Processing
|
|
|
|
|
|
Max. swing Dia. over bed
|
mm |
Ф1000 |
Ф1250 |
Ф1400 |
|
Max. swing Dia. over carriage
|
mm |
Ф600 |
Ф865 |
Ф1015 |
|
Max. swing Dia. in gap(only for 62 series)
|
mm |
Ф1380 |
Ф1750 |
Ф1900 |
|
Width of bed |
mm |
755 |
|
Max. length of workpiece |
m |
1.5/2/3/4/5/6/8/10/12 |
|
Maximum turned length |
m |
1.3/1.8/2.8/3.8/4.8/5.8/7.8/9.8/11.8 |
|
Effective length of gap |
mm |
590 |
|
Max. Weight of work piece(between centers) |
kg |
5000 |
|
Spindle |
|
|
|
|
|
Spindle nose |
|
A₂-15 |
|
Spindle bore |
mm |
Ф130 |
|
Taper of bore |
|
Metric Ф140 1:20 |
|
Step of spindle speed
|
|
24(Normal) 12(Reverse) |
|
Range of spindle speed
|
rpm |
2.5~250 |
|
Pitch & Dia. of longitudinal ball screw
|
mm |
12/Ф70 |
|
Number of longitudinal and cross feeds |
|
97 |
|
Feed |
|
|
|
|
|
Range of longitudinal feed
|
mm/r |
0.1～12 |
|
Range of cross feed
|
mm/r |
0.05~6 |
|
Range of middle tool post feed
|
mm/r |
0.025~3 |
|
Thread cutting |
|
|
|
|
|
Metric range/No. |
|
1~120mm/45 |
|
Inch range/No |
|
30～1/4T.P.I/42 |
|
D.P.Range/No. |
|
0.5~60D.P/48 |
|
Module range/No. |
|
1/2~60M.P/46 |
|
Rapid traverse |
|
|
|
|
|
Longituding |
mm/min |
3740 |
|
Cross |
mm/min |
1870 |
|
middle tool post |
mm/min |
935 |
|
Tailstock |
|
|
|
|
|
External Dia. |
mm |
Ф160 |
|
Taper of bore |
|
Metric Ф80 |
|
Max. traverse |
mm |
300 |
|
Vertical distance from spindle center to installing basis |
mm |
41 |
51 |
|
Swing angle of tool post |
Deg.
|
±90 |
|
Max. travel of middle tool post |
mm |
- |
400 |
|
Max. travel of top slide |
mm |
200 |
200 |
|
Max. travel of cross slide |
mm |
720 |
|
Max. size of tool shank (W×H) |
mm |
40×40 |
50×50 |
|
Power of main motor |
kW |
22 |
|
Rapid feed motor power |
kW |
1.5 |
|
Coolant pump power |
kW |
0.25 |
|
3m machine overall dimensions(L×W×H) |
mm |
6000×1860×1700 |
6000×1860×1825 |
6000×1860×1900 |
|
3m Net weight |
kg |
11200 |
12000 |
12500 |
