Item |
Unit |
MAICL-35B |
MAICL-35BH |
|
Travel |
|
|
|
|
Max.swing Dia. over bed |
mm |
Ø700 |
Ø700 |
|
Max.cutting Dia. for disc parts |
mm |
Ø600 |
Ø550 |
|
Max.cutting Dia. for axle parts |
mm |
Ø470 |
Ø470 |
|
Max.cutting length (chuck end face to center) |
mm |
1500 |
1450 |
|
Distance from spindle center to ground |
mm |
1150 |
1150 |
|
Max.travel for axis X |
mm |
325 |
325 |
|
Max.travel for axis Z |
mm |
1550 |
1550 |
|
Spindle |
|
|
|
|
Spindle nose |
|
A₂-11 |
A₂-11 |
|
Spindle bore |
mm |
Ø105 |
Ø105 |
|
Spindle drive mode |
|
belt drive |
belt drive |
|
Max. spindle speed |
rpm |
1600 |
1600 |
|
Spindle motor power |
kW |
22 |
22 |
|
Spindle front end diameter |
mm |
Ø160 |
Ø160 |
|
Feed |
|
|
|
|
X/Z axis rapid feed |
m/min |
16/12 |
16/12 |
|
X/Z axis servo motor power |
kW |
4/7 |
4/7 |
|
Turret |
|
|
|
|
Tool post stations |
|
12 |
12 |
|
Outer Dia. cutting tool shank |
mm |
32×32 |
25×25 |
|
Max.inner Dia. cutting tool shank |
mm |
Ø50 |
Ø40 |
|
Max. rotation speed of rotating tool |
rpm |
/ |
4000（Different systems may change） |
|
Power turret motor |
kW |
/ |
3.7/5.5 |
|
Rotating tool sleeve |
|
/ |
ER32 |
|
Tailstock |
|
|
|
|
Tailstock sleeve diameter |
mm |
Ø120 |
Ø120 |
|
Tailstock sleeve travel |
mm |
200 |
200 |
|
Tailstock sleeve bore taper |
|
MT NO.6 |
MT NO.6 |
|

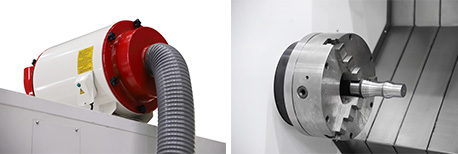

Others |
|
|
|
|
Bed structure |
|
45°slant bed |
45° slant bed |
|
Total power capacity |
kVA |
40 |
40 |
|
Cooling pump power |
W |
750 |
750 |
|
Lubrication pump capacity |
L |
1.8 |
1.8 |
|
Overall dimensions （L×W×H） |
mm |
6200×1980×2260 |
6200×1980×2260 |
|
Net weight |
kg |
9000 |
9000 |
